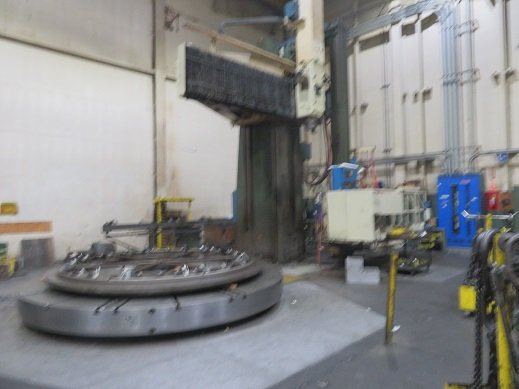

O-M CNC Vertical Boring Mill, Model 40/70

O-M CNC Vertical Boring Mill, Model 40/70

Max Table Swing: 276”

Table Dia-Std: 157.5”

Max Weight Work Piece: 174,000 lbs

Max. Clearance Under Rail: 149”

No. of Table Speeds: Inf. Variable

Range of Table Speeds: .21-30 rpm

Motor HP: 100 HP DC

Table “T” Slots: 1 3/8”

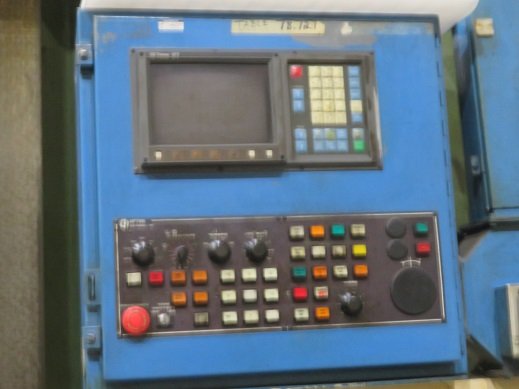

CNC Control: GE Fanuc

Rail Head (std)

Ram Size: 9” Octagon

Ram Vertical Travel: 60”

Ram Traverse Rate: 300 IPM

Tool Holder Shank: 2” X 2”

Tape Scale w/readout: X & Y Axis

Saddle Travel on Arm: 112”

Saddle Feed Rate: Inf. Variable

Ram Feed rate: Inf. Variable

Column Adjustable Travel: 54”

Rapid Travel of Column: 21” in/minute

Cross Rail Vertical Travel: 84”

Rapid Travel of Cross Rail: 12” in/ipm

May be seen under power in Los Angeles

Price: POR      youtube video: https://youtu.be/2GefGmZsu8U
