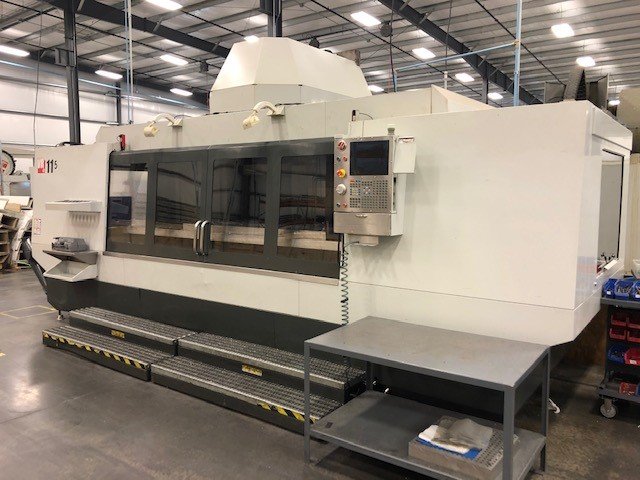

Haas VR-11B VMC, new 2013

DESCRIPTION: 120” X 40” x 30” 5 Axis Machining Center with 30 HP, 15,000 RPM

Spindle, 32 Tool Magazine for CT 40 Tooling, Automatic Chip Auger, 750 MB Program

Memory, High Speed Machining, Rigid Tapping, Flood Coolant System, 30 HP (22.4 KW)

Vector Drive, High Intensity Lighting, Ethernet Interface, Dual Halogen Lamps Door

Activated, 40 Taper Programmable Coolant Nozzle

GENERAL SPECIFICATIONS

X - Axis Travel: 120”

Y - Axis Travel: 40”

Z - Axis Travel: 30”

Max Rating X: 7.5 HP

Max Rating Y: 5 HP

Max Rating Z: 5 HP

A - Axis Tilt: ± 32°

Max Thrust X/Y/Z: 3,400 LBS

T - Slot Width: ⅝”

Max Cutting A/B: 600° / Min

Max Tooling Weight: 12 LB

Coolant Capacity: 95 Gal.

Max Tool Diameter: 3.5”

Bearing Lubrication: Air/Oil Injection

T - Slot Center Distance: 4.92”

Positioning A/B Axes: ± 45 Arc - Sec

Drive System: Vector Drive

Taper: CT40

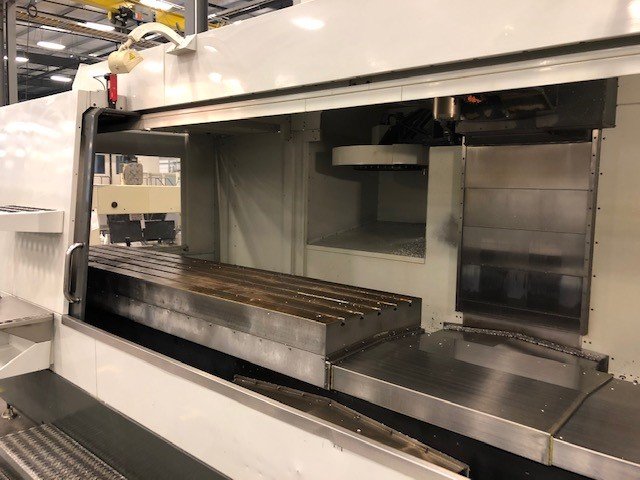

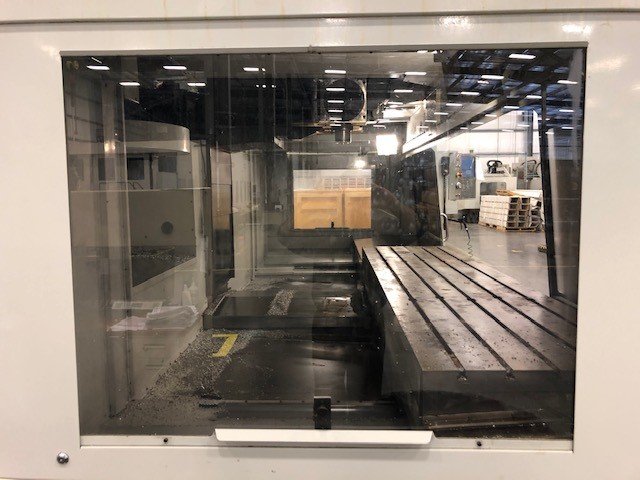

Table Size: 120” X 28”

Tool Changer: 32 ATC

Max Speed: 15,000 RPM

Max Rating: 30 HP

Max Cutting: 360 In/Min

Rapids On A/B: 1900°/Min

Rapids on X: 360 IN/Min

Rapids on Y & Z: 600 IN/Min

Air Required: 9 SCFM, 100 PSI

B - Axis Rotation: ±32°

Spindle Nose To Table: 4” - 34”

Price: $159500.00
